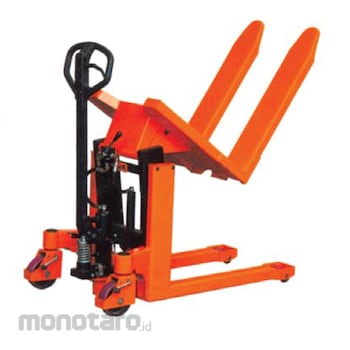

Superform Pallet Tilter
#Grup produk P108182723
Sebelum PPN:
Rp20.999.900 - Rp45.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Capacity (kg) | 1000 |
|---|---|
| Overall Forks Width (W) (mm) | 560 |
| Fork Length (L) (mm) | 800 |
| Minimum Fork Height (mm) | 85 |
| Max. Fork Height (H) (mm) | 285 |
| Handle Height (L1) (mm) | 1138 |
| Fork Tip Length from Roller (L2) (mm) | 135 |
| Load Centre (C1) (mm) | 200-400 |
| Load Centre (C2) (mm) | 200-420 |
| Overall Height, Lowered (H2) (mm) | 750 |
| Overall Height, Raised (H1) (mm) | 950 |
| Overall Width B (mm) | 638 |
| Type | Pallet Tilter |
| Width Between Forks b1 (mm) | 234 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Superform pallet tilter lifts, tilts and transports crates/pallet mesh.- Designed to give the user an ergonomically correct position to reach loads easily without the necessity of bending down or stretching up.
- Handle can be turned and locked in position away from the work area.
- Applies to both sitting and standing positions.
- Forks can be tilted up to 90°.
- Both are supplied as standard with parking brake and foot protectors.
- Manual type : Lift and tilt functions are by manual hydraulic action.
