Autonics Controllers Counters FXS Series
#Grup produk P108173600
Kondisi Barang:
Authorized Partner
Spesifikasi
| Environment Ambient Temperature (°C) | -10 to 55; Storage: -25 to 65 |
|---|---|
| Max. Counting Speed (cps) | 1, 30, 2k, 5k |
| Display Method | 5-digit 7-segment LED |
| Min. Signal Width (ms) | 20 |
| Control Output Type | Indicator |
| Environment Ambient Humidity (%RH) | 35 to 85; Storage: 35 to 85 |
| External Power Supply (VDC) | Max. 12 (±10% 50mA) |
| Memory Protection | Approx. 10 years |
| Operation Method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Power Supply (VAC/Hz) | 100-240/(50/60) |
| Protection Structure | IP20(front panel) |
| Setting Range (s) | 0.1 to 9999.9 |
| Signal Input Method | Voltage input (PNP), No-voltage input (NPN) |
| Terminal | Terminal block |
| Time Operation | Power On Start |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

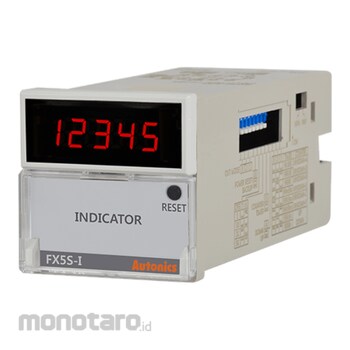

The FXS series compact digital counter/timers are integrated units with functions of counters and timers. Counting speeds of 1 cps, 30 cps, 2 kcps, and 5 kcps are available along with various time setting ranges. Count-up, count-down, and count up/down modes are available for accurate measurement and display of various system configurations. The FXS series is available in 4-digit and 5-digit models in standard DIN size W 48 x H 48 mm.
Feature
'- Counting speeds : 1cps/30cps/2kcps/5kcps- Switch between counter and timer operation using DIP switch
- Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
- Operation modes : count-up, count-down, count-up/down
- Set decimal point, hr/min/sec display with RESET key
Counter
- 20 input modes, 18 output modes
Timer
- Various output modes (16 output modes)
- Various time setting ranges
5-digit models : 0.01sec to 9999.9hr
4-digit models : 0.01sec to 9999hr
- Output model types : single preset, indicator only
- Power supply
100-240 VAC 50/60Hz (AC type)
24VAC 50/60Hz, 24-48VDC (AC/DC universal type).
