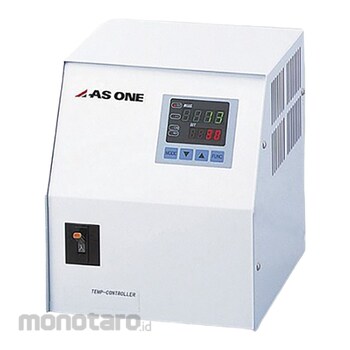

AS ONE Mass Temperature Controller
#Grup produk P108134522
Spesifikasi
| Connection Capacity (V/A) | AC100/200V 25A |
|---|---|
| Size (mm) | 190x239x220 |
| Temperature Control System | PID control, SSR output |
| Timer Setting Available Time | 1 minute - 99 hours 59 minutes |
| Power Cord | Non (connected to power terminal on the back terminal block) |
| Temperature Settings Range (Pt Sensor/K Thermocouple) (°C) | 0.0 - 200.0/0 - 500. |
| Alarm Contact Output AC100/200V (A) | 2.4 |
| Control Voltage Output AC100/200V (A) | 25 |
| Safety device | Overcurrent breaker |
| Temperature Indication Accuracy (°C) | +/- 2 or +/- 0.3% + 1 digit, whichever is larger |
| Timer Type | Autostart, auto-stop, SV start |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
Since it is mass thermoregulator of max.25A, control of large-sized heater etc.
is possible.
Since it is 100V, 200V combination, possible to use it broadly in one set.
Timer set of 3 patterns is possible.
Both K type thermo couple and Pt100ohm can be used (factory setting is K type thermo couple) .
