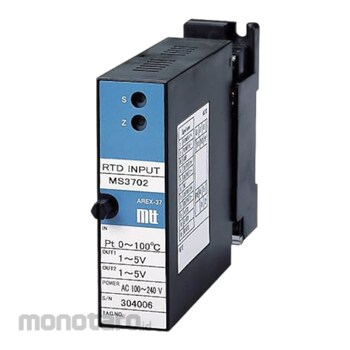

MTT Insulation 1 output temperature measuring resistor temperature converter
#Grup produk P108120583
Spesifikasi
| Measurement Temperature Range (°C) | 0 to 100 |
|---|---|
| Mounting Method | Wall mounting, DIN rail mounting common |
| External Dimension (mm) | 29x86x125 |
| Supply power supply | AC100 to 240 V 50/60 Hz |
| Input Signal Resistance (ohm) | Pt 100 |
| Output Signal | DC4 to 20 mA |
| Allowable Voltage Range (VAC-V) | 85 to 264 |
| Maximum Current Output DC (mA) | 4 to 20 |
| Span Adjustment Range | Approx. ± 5% of Span |
| System Requirements (°C/%RH) | Temperature/-5 to + 55, Humidity/5 to 90 (No condensation) |
| Wiring Methods | M3.5 Screw Terminal Connections |
| Zero Point Adjustment Range | Approximately ± 5% of Span |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
After detecting the resistance change of the temperature measuring resistor, it is converted into an insulated instrumentation unified signal and output.It has a built-in linearizer burnout function.
0.
2 μm gold plating is applied to the contact parts of the body and socket, providing high reliability and durability.
