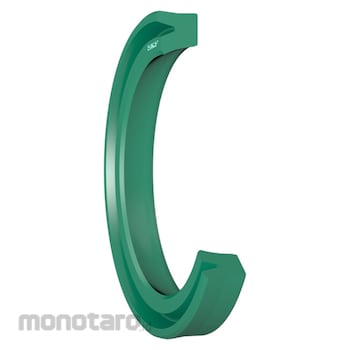

SKF Seal Hidrolik Rod U-Cup
#Grup produk P108106583
Spesifikasi
| Design | S1S |
|---|---|
| Alternative Tolerance Class for Rod Diameter | h9 |
| Extreme Lower Temperature Limit (°C) | -60 |
| Extreme Upper Temperature Limit (°C) | 130 |
| Lower Limit Deviation tol D (mm) | 0 (zero) |
| Lower Limit Deviation tol L (mm) | 0 (zero) |
| Lowest Operating Temperature Limit (°C) | -30 |
| Maximum Pressure Limit (N/mm²) | 40 |
| Pressure (bar) | Max. 400 |
| Primary Sealing Element | ECOPUR |
| Reduced Performance Temperature Lower Limit (°C) | -40 |
| Reduced Performance Temperature Upper Limit (°C) | 120 |
| Reference Temperature for Extrusion Gap (°C) | 80 |
| Speed (m/s) | Max. 1 |
| Tolerance Class for Housing Groove Diameter | H10 |
| Tolerance Class for Rod Diameter | f8 |
| Upper Limit Deviation tol L (mm) | 0.2 |
| Upper Operating Temperature Limit (°C) | 110 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These hydraulic rod/piston seals are of an unloaded U-cup, single-lip design. They are made of premium ECOPUR thermoplastic polyurethane, which improves long-term sealing performance. The optimized seal geometry provides excellent performance and a long service life
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Excellent performance and long service life- Suitable for seal housings according to ISO 5597
- Accommodate pressures up to 400 bar (5 800 psi)
- Suitable for medium to heavy duty applications
