The take-off module enables to draw air from the air treatment group, both in middle and end position. The same operation, although in a more limited way, can be carried out with the intermediate cartridge.
Outlets locations: B (front and rear) G ; F ; A

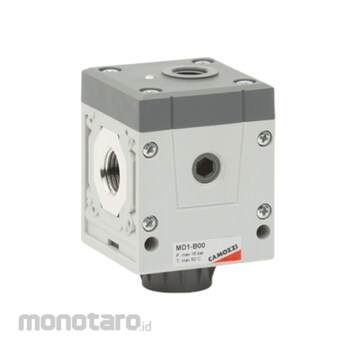

Camozzi Take-Off Block
#Grup produk P108102684
Spesifikasi
| Dimension D (mm) | 28.5 |
|---|---|
| Dimensions e (mm) | 42 |
| Dimensions h (mm) | 26.2 |
| Dimensions m (mm) | 9.5 |
| Dimensions r (mm) | 51.7 |
| Construction | Modular, compact |
| Derivations | Take-off block: 4x 1/8, Joining cartridge:2x 1/8 |
| Dimension I (mm) | 43 |
| Dimension L (mm) | Ø4 |
| Dimension V (mm) | 9 |
| Dimensions s (mm) | 35.1 |
| Fixing | Take-off block : In-line; wall-mounting by means of through holes in the body or with a support bracket |
| Fluid | Compressed air |
| Nominal Flow at 6bar with Pressure Loss at 1bar (nl/minute) | MD1-B00-1/8 = 1300, MD1-B00-1/4 = 2300, MD1-B00-3/8 = 3400 |
| Operating Pressure (bar) | 0 to 16 |
| Operating Temperature (°C) | -5 to 50 |
| Port Size B | G1/8 |
| Ports - Joining Cartridge with Derivation | 3/8 |
| Ports - Joining Cartridge with VNR | 3/8 |
| Ports - Take-off Block | With interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting, for tube with Ø 6, 8 and 10 mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Compact design- Utilities orientation
- Cartridge with non return valve function
- Power supply block for treatment units mounted on opposite sides
