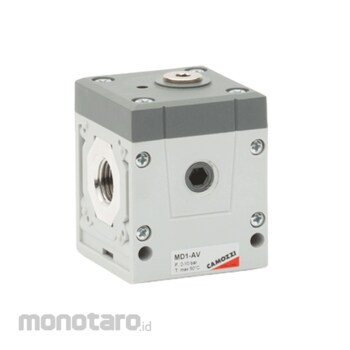

Camozzi Soft-Start Valve Series MD
#Grup produk P108102347
Spesifikasi
| Dimensions e (mm) | 42 |
|---|---|
| Dimensions h (mm) | 26.2 |
| Port Size B | G1/8 |
| Construction | Modular, compact, poppet-type |
| Dimension I (mm) | 43 |
| Dimension L (mm) | Ø4 |
| Dimension N (mm) | 53.2 |
| Dimension V (mm) | 10.5 |
| Dimensions c (mm) | 42 |
| Dimensions o (mm) | 2.5 |
| Dimensions p (mm) | 22.7 |
| Dimensions s (mm) | 27 |
| Dimensions t (mm) | 34.6 |
| Fixing | In-line; wall-mounting by means of through hole in the body or with a support bracket |
| Fluid | Compressed air |
| Nominal Flow at 6bar with Pressure Loss at 1bar (nl/minute) | MD1-AV-1/8 = 1000, MD1-AV-1/4 = 1350, MD1-AV-3/8 = 1500 |
| Operating Pressure (bar) | 2 to 10 |
| Operating Temperature (°C) | -5 to 50 |
| Port Size F | G1/8 |
| Ports | With interchangeable cartridges: 1/8, 1/4 and 3/8 threaded, integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
