Series VTCL bellows suction pads (1,5 folds) have a rugged design and consist of a nipple and rubber part.
The nipples are inserted directly into the rubber part.
The rubber parts can also be ordered separately without nipples as spare parts.

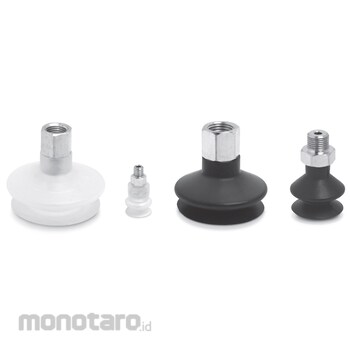

Camozzi Series VTCL Bellow Suction Pad (Round) Material Silicone
#Grup produk P108102268
Spesifikasi
| Shape | Round |
|---|---|
| Description | Wear resistant suction pad consisting of rubber part VTCL with 1.5 folds and connection nipp |
| Material | Silicone |
| Construction | Nipples and suction pads are supplied not pre-assembled |
| Maintenance | It is possible to replace the rubber part |
| Working Temperature (°C) | SILICONE version: -50 to +220 (for short time <30sec.); -30 to +180 (long-term) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Wide range of diameters, available in NBR or Silicone.- Soft, tapered sealing lip for very good adaption to curved or uneven workpiece surfaces in general.
- High suction force and optimal damping when placed on the workpiece.
- Support on the bottom to avoid permanent deformation of the workpiece.
- Very stiff top fold for good stability and good resistance towards transversal forces at high accelerations.
- Good compensation of possible height differences on the workpiece.
- Optimised shape with 1,5 folds.
Use
Applications:- Handling of even or uneven workpieces such as planels for car bodies, tubes, cardboard boxes
Handling of fragile workpieces such as electronics components, injection moulded pieces, etc
- Handling of welded pieces
- Silicone version for handling high temperatures pieces
