Series 61 cylinders have been designed to comply with the dimensions laid down in the ISO 15552 standards. A permanent magnet, mounted on the piston in these cylinders, enables information to be received regarding the piston position by means of proximity switches mounted in grooves along the cylinder profile. These grooves can be covered with a slot cover profile.
This cylinder series is equipped with adjustable end-stroke cushioning. Moreover, they are equipped with a mechanical cushioning in order to reduce the impact of the piston as it reaches the end of the stroke.

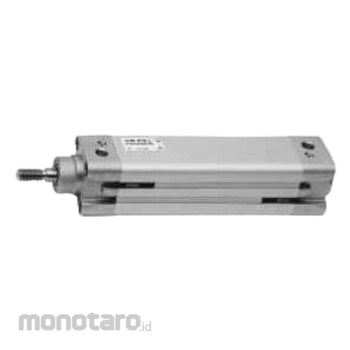

Camozzi Series 61M Cylinder Aluminium profile (Silinder Pneumatik)
#Grup produk P108102082
Sebelum PPN:
Rp2.299.900 - Rp7.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | Standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring, stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal |
|---|---|
| Type of Construction | With tie-rods (inside the profile) |
| Operation | Double-acting, front and rear cushioned |
| Fluid | Filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Operating Pressure (bar) | 1 to 10 (standard and low temperature) |
| Operating Temperature (°C) | Standard and low friction: 0 to 80 (with dry air -20) |
| Speed (mm/s) | 10 to 1000, no load (standard and low temperature); 5 to 1000, no load (low friction) |
| Stroke (min-max) (mm) | 10 to 2500 |
| Type of Mounting | With front / rear flange, foot mounting, with front / rear / centre / swivel trunnion |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- In compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards- Rolled stainless steel rod
- Clean design with adjustable pneumatic cushioning
- Available special versions
TANDEM:
- Double thrust and traction forces
LOW FRICTION:
- Friction force reduced by over 40%
LOW TEMPERATURE:
- Versions for -40°C and for -50°C
G VARIANT FOR DUSTY APPLICATIONS:
- Highly resistant to dust, cement, resin, mud and wood residue
