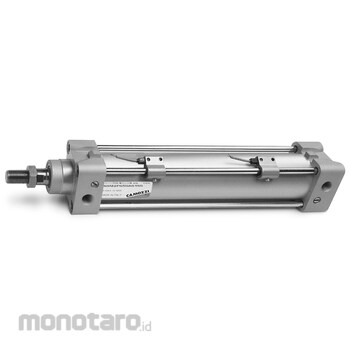

The Series 60 cylinders have been designed to comply with the dimensions laid down in the ISO 15552 standards. A permanent magnet, mounted on the piston, enables information to be received regarding the piston position by means of proximity switches positioned along the cylinder tube.
This cylinder series is normally equipped with adjustable end-stroke cushioning. Moreover, these cylinders are equipped with bumpers in order to reduce the impact of the piston as it reaches the end of the stroke.

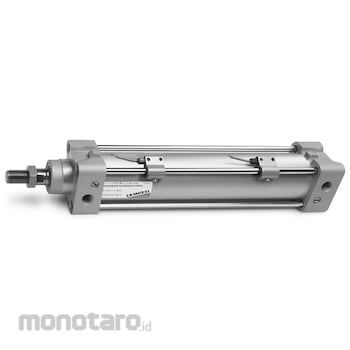

Camozzi Series 60N Cylinder Pneumatic (Silinder Pneumatik)
#Grup produk P108102064
Sebelum PPN:
Rp2.299.900 - Rp6.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | AL end-blocks and piston, rolled stainless steel AISI 420B rod, anodized AL tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals |
|---|---|
| Fluid | Filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Operating Pressure (bar) | 1 to 10 (standard) |
| Operating Temperature (°C) | 0 to 80 (with dry air -20) |
| Operation | Double-acting, front and rear cushions |
| Speed (mm/s) | 10 to 1000 (standard) |
| Stroke (min-max) (mm) | 10 to 2500 |
| Type of Construction | With tie-rods |
| Type of Mounting | With tie-rods, with front / rear flange, foot mounting, with centre / front / rear / swivel trunnion |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- In compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards- Rolled stainless steel rod
- Adjustable pneumatic cushioning
- Available special versions
TANDEM:
- Double thrust and traction forces
LOW FRICTION:
- Friction force reduced by over 40%
LOW TEMPERATURES:
- Versions for -40°C and for -50°C
G VARIANT FOR DUSTY APPLICATIONS:
- Highly resistant to dust, cement, resin, mud, and wood residue
