Series 6 solenoid valves are available as 2/2 and 3/2-way, either NC or NO.
These directly operated solenoid valves can be used either with or without lubrication.
The bodies of these valves can be used either individually or in manifolds.
The latter are provided with G1/8 threaded ports or an inbuilt diameter 4 cartridge(G3/8 for 2-way only).

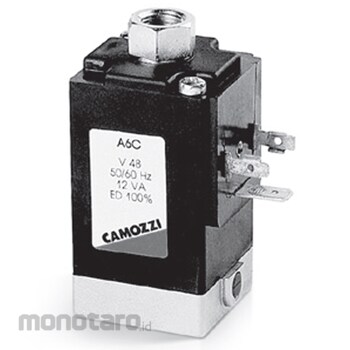

Camozzi Series 6 Direct Acting Solenoid Valve
#Grup produk P108102028
Sebelum PPN:
Rp1.199.900 - Rp7.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Function | 3/2 NC |
|---|---|
| Nominal Diameter (mm) | 2 |
| Body Material | Nickel-plated brass - anodized aluminium |
| Duty Cycle (%) | ED 100 |
| Electrical Connection | H (180°C) |
| Installation | In any position |
| Internal Parts Material | Stainless Steel |
| Medium | Filtered air, class 5.4.4 (5.1.4 for versions -50°C) according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas |
| Operating Temperature (°C) | 0 to 60 (seals in FKM) / -50 to +50 (seals in NBR) |
| Operation | Direct acting poppet type |
| Protection Class | with connector DIN EN 175 301-803-A; IP65 with connector |
| Response Time (ms) | ON <15 - OFF <15 |
| Seal Material | FKM (NBR for versions -50°C) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Ports: G1/8, G3/8, cartridge Ø4- Available also in version for the low
