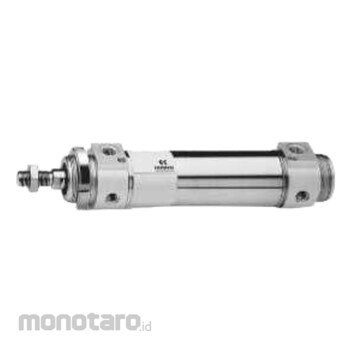

Camozzi Series 42M Compact Cylinder (Silinder Pneumatik)
#Grup produk P108102000
Sebelum PPN:
Rp2.899.900 - Rp5.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | End-blocks = AL, tube = stainless steel AISI 304, rod = stainless steel AISI 420B, other parts (see coding) |
|---|---|
| Fluid | Clean air, without lubrication. , If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Operating Pressure (bar) | 1 to 10 (double-acting) |
| Operating Temperature (°C) | 0 to 80 (with dry air -20) |
| Operation | Double-acting, front and rear cushions |
| Speed (mm/s) | 10 to 1000 (NO LOAD) |
| Stroke (min-max) (mm) | 10 - 1000 |
| Type of Construction | Compact - flanged |
| Type of Mounting | Front flange, rear flange, feet, front and rear trunnion, threaded pins |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Series 42 cylinders have been designed without tie rods to assure an extremely clean design. Stainless steel has been used for the tube and the rod, while the end cover is made in anodized Aluminium. These cylinders are normally equipped with adjustable end-stroke cushioning and with a mechanical cushioning in order to make the impact of the piston less noisy as it reaches the end of the stroke.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Perfect alignment- Different mounting options
