Series 40 cylinders have been designed in compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards.
A permanent magnet on the piston of these cylinders is able to send, through proximity switches mounted on the cylinder sliding axis, electrical signals to indicate its position.
This series is normally equipped with end-stroke cushioning which can be adjusted through a screw on the end block.
In order to quieten the impact of the piston on the end block, these cylinders are also equipped with mechanical cushioning.

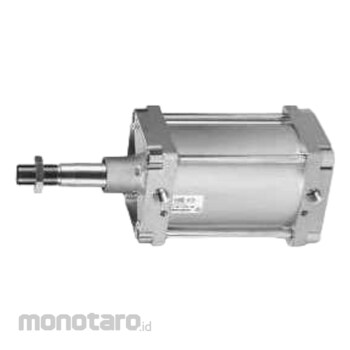

Camozzi Series 40M Cylinder Pneumatic (Silinder Pneumatik)
#Grup produk P108101986
Sebelum PPN:
Rp16.999.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | End blocks and piston AL (Ø250-320mm), rolled SS AISI 420B (Ø 160-200mm), piston rod chrome plated steel (Ø250-320mm), zinc-plated steel piston rod nut, tie-rods, tie-rod nut, anodized AL tube, NBR-PU rod piston and cushion seals, brass rod scraper ring |
|---|---|
| Dimension D (mm) | 25 |
| Dimensions e (mm) | 176 |
| Dimensions h (mm) | 6 |
| Dimension SW1 (mm) | 36 |
| Dimension Sw2 (mm) | 17 |
| Dimension AM (mm) | 72 |
| Dimension L1+ (mm) | 180 |
| Dimension L2+ (mm) | 260 |
| Dimensions f (mm) | 53.5 |
| Dimensions g (mm) | 12 |
| Fluid | Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Mounting | With tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination |
| Operating Pressure (bar) | 1 to 10 |
| Operating Temperature (°C) | 0 to 80 (with dry air -20) |
| Operation | Double-acting |
| Size KK | M36x2 |
| Speed (mm/s) | 10 to 500 (without load) |
| Stroke (min-max) (mm) | 10 to 2500 |
| Type of Construction | With tie-rods |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- In compliance with ISO 15552 standards and with the previous DIN/ISO 6431 - VDMA 24562 standards- Adjustable pneumatic cushioning
- Rolled stainless steel rod (Ø 160 - 200 mm)
- Chrome plated steel rod (Ø 250 - 320 mm)
- Rod scraper in brass
