Series 27 has been designed to reduce the cylinders sizes as much as possible. These cylinders have been constructed with clean lines using stainless steel for both the tube and the rod and Aluminium for the end-blocks.
The choice of material and other design features have allowed to create a range of versatile and reliable cylinders.
The precise method of securing the tube to the end block ensures that all the parts are perfectly aligned. Mechanical cushioning has been fitted on these cylinders in order to reduce noise produced by the piston impact on the end-blocks. Cylinders Series 27 are suitable for assembling with magnetic sensors. Various mounting bracket accessories enable the cylinders to be fitted to suit the requirements of a particular application.

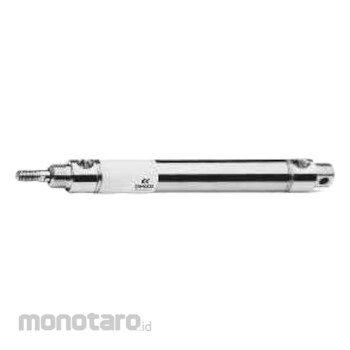

Camozzi Series 27T Double Acting Cylinder (Silinder Pneumatik)
#Grup produk P108101889
Spesifikasi
| Material | Rod: Ø20 - 25 stainless steel AISI 303 - Ø32 to 63 stainless steel AISI 420B, tube: INOX AISI 304, piston and rod seals = PU |
|---|---|
| Fluid | Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Mounting | Feet - trunnion - steel bar - pins |
| Operating Pressure (bar) | 1 to 10 |
| Operating Temperature (°C) | 0 to 80 (with dry air -20) |
| Operation | Double acting |
| Speed (mm/s) | 10 to 1000 (no load) |
| Stroke (min-max) (mm) | All diameters 10 - 1000 |
| Type of Construction | Flanged |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Reduced dimensions- Different mounting options
- Perfect alignment, perfect linearity
