Series A solenoid valves are of the directly operated type and can be used with dry or lubricated air. They are available in the 2/2 and 3/2-way versions with normally closed (NC) or normally open (NO) operation. As shown in the following tables, they are supplied in different versions according to the type of body, threaded ports and orifice. They can thus satisfy various operating and installation requirements.
The solenoid can be easily and quickly replaced without interfering with the pressurised part of the valve. On the same mechanical part different types of solenoids can be interchanged. The choice of solenoids determines the performance of the solenoid valve in terms of consumption and pressure.

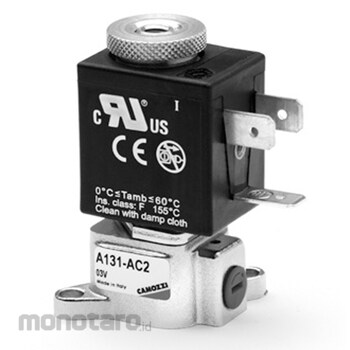

Camozzi Pneumatic Solenoid Valve A Series
#Grup produk P108100826
Spesifikasi
| Operation | Direct acting poppet type |
|---|---|
| Nominal Flow (nl/minute) | 40 to 130 (air @ 6bar, pressure Loss 1bar) |
| Flow Coefficient Kv (L/minute) | 0.62 to 2.0 |
| Body Material | Nickel-plated brass |
| Duty Cycle (%) | ED 100 |
| Electrical Connection | F (155°C) |
| Installation | In any position |
| Internal Parts Material | Stainless steel |
| Medium | Filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas |
| Operating Pressure (bar) | -0.9 to 15 |
| Operating Temperature (°C) | 0 to 60 (with dry air -20) |
| Power Consumption (W) | 3-5 (DC) / 3.5-7VA (AC) |
| Protection Class | DIN 43650 connector, (A, B Shape), IP65 with connector |
| Response Time (ms) | ON <15 - OFF <25 |
| Seal Material | HNBR, FKM |
| Voltage (V) | 12 to 110 DC - 24 to 380 AC - 50/60Hz |
| Voltage Tolerance (%) | ±10 (DC) / -15 to +10 (AC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Ports: M5, G1/8, R1/8, cartridge ø4- Bistable version also available (with magnetic memory)
