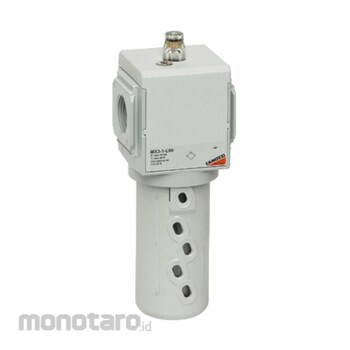

Camozzi Lubricator Series MX
#Grup produk P108100242
Spesifikasi
| Dimension D (mm) | 18.5 |
|---|---|
| Dimensions m (mm) | 84.5 |
| Dimensions r (mm) | 85 |
| Dimensions g (mm) | 55.5 |
| Ports | G3/8 |
| Construction | Modular, compact |
| Dimension I (mm) | 68 |
| Dimension N (mm) | 210 |
| Dimensions c (mm) | 70 |
| Dimensions o (mm) | 104.5 |
| Dimensions p (mm) | 20.5 |
| Dimensions s (mm) | 152 |
| Minimum Air Consumption for Lubrication (nl/minute) | At 1 bar = 17, at 6 bar = 38 |
| Mounting | Vertical in-line, wall-mounting (by means of clamps) |
| Oil Capacity (cm³) | 170 |
| Oil Refilling | Even during use |
| Oil for Lubrication | Use ISO VG32 oils. Once applied, the lubrication should never be interrupted. |
| Operating Pressure (bar) | 0 to 16 |
| Operating Temperature (°C) | -5 to 50 up to 16 bar (with the dew point of the fluid lower than 2 at the min. working temperature), -5 to 60 up to 10 bar (with the dew point of the fluid lower than 2 at the min. working temperature) |
| Port Size (A) | G3/8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
