The Series MD offers multi-sector solutions that ensure saving in terms of installation time, space and costs.
Series MD lockable isolation valves allow the inlet and exhaust of compressed air from the plant and can meet several application requirements.
The electric version can be equipped with different options of manual override (Push & Turn, Push-in, retaining lever).
Moreover, a version without override is also available.
The manually operated valve can be locked thanks to the use of padlocks

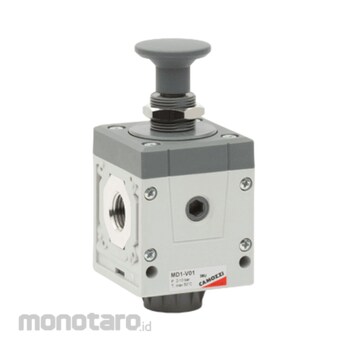

Camozzi Lockable Isolation Valve Series MD
#Grup produk P108100206
Sebelum PPN:
Rp1.199.900 - Rp2.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions e (mm) | 42 |
|---|---|
| Construction | Modular, compact, spool-type |
| Dimension I (mm) | 43 |
| Dimension L (mm) | Ø4 |
| Dimension V (mm) | 9 |
| Dimensions f (mm) | 28.5 |
| Dimensions m (mm) | 9.5 |
| Dimensions o (mm) | 26.2 |
| Dimensions r (mm) | 51.7 |
| Dimensions s (mm) | 35.1 |
| Fixing | In-line; wall-mounting by means of through holes in the body or with a support bracket; panel-mounting (for manually operated version only) |
| Fluid | Compressed air |
| Nominal Exhaust Flow at 6bar with Pressure Loss at 1bar (nl/minute) | 850 |
| Operating Temperature (°C) | -5 to 50 up to 16 bar |
| Port Size B | G1/8 |
| Ports | With interchangeable cartridges: 1/8, 1/4 and 3/8 threaded, integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
