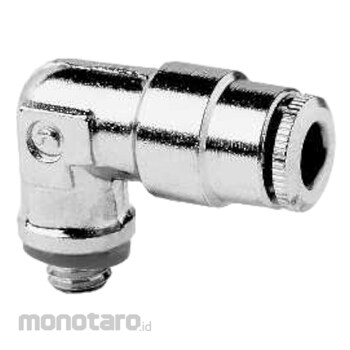

Camozzi Fitting Mod. 6501 4-M5 Metric Fix Male Elbow Fitting
#Grup produk P108098248
Spesifikasi
| Material | Standard: body and collet in nickel-plated brass, O-Ring in NBR, thread seals in PTFE - NBR - PA; Self-retaining device: body and collet in nickel-plated brass, poppet valve in brass, spring in stainless steel, O-Ring in NBR, thread seals in PTFE |
|---|---|
| Dimensions e (mm) | 6 |
| Dimensions h (mm) | 4 |
| Dimensions m (mm) | 17.5 |
| Temperature (°C) | -20 to 80 (see the technical data of tubing used), Micro models: -10 to 80 (see the technical data of tubing used) |
| Diameter (mm) | Ø4, Micro models: ø 3 - 4 - 6 - 8 - 10 mm |
| Dimension SW (mm) | 8 |
| Dimensions a (mm) | 4 |
| Dimensions c (mm) | 3.5 |
| Dimensions f (mm) | 9 |
| Fluid | Compressed air (for other types of fluid, contact our engineers) |
| Size D | M5 |
| Thread | GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric threads available on request; NPT on request, Micro models: M3 - M5 - M7 - G1/8 - G1/4 |
| Tube to Connect | Polyamide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester |
| Working Pressure (Bar) | - standard models: min -0.9 - max 16 (see tubing), - models with self-retaining device: 0 to 16 |
