Series N filters are available with G1/8 and G1/4 gas ports.
The models are available with 3 different filtering elements: 25, 5 and 0.01µm.
The version with semi-automatic manual drain is equipped with a transparent bowl that makes the monitoring of the condensate level very easy.
The version with metal bowl is particularly suitable for applications subject to impacts or in the presence of aggressive agents that could damage the PA12 bowl.

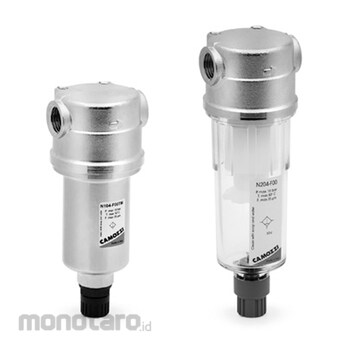

Camozzi Filter Series N
#Grup produk P108097841
Spesifikasi
| Construction | HDPE and coalescing filtering element |
|---|---|
| Material | Brass, transparent PA12 or nickel-plated brass, NBR |
| Operating Temperature (°C) | -5 to 50 at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
| Draining of Condensate | Semi-automatic manual |
| Mounting | vertical, inline |
| Operating Pressure (bar) | 0.3 to 16 (with depressurisation max 10bar) |
| Quality of Delivered Air According to ISO 8573-1 2010 | Class 7.8.4 with 25µm filtering element |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
Available with: transparent PA12 bowl or nickel-plated brass bowl for the small version (N1)Ulasan Produk
