Series 4 solenoid valves have been designed in the 3/2, 5/2, 5/3 versions and with the following two devices of actuation:
- electropneumatically actuatedwith mechanical spring return
- electropneumatically actuated and return with external and internal air pressure supply
Series 4 valves are equipped with a manual override which allows a stableoperation and they are particularly suitable for mounting in arduous conditions.
All these valves can be operated by solenoids Series U, G A8 and H8.
Moreover, valves with ports G1/2 only can be supplied with solenoids Series A6 (32x32).
Pneumatically actuated valves 3/2 NC become NO when the supply is on connection 3.

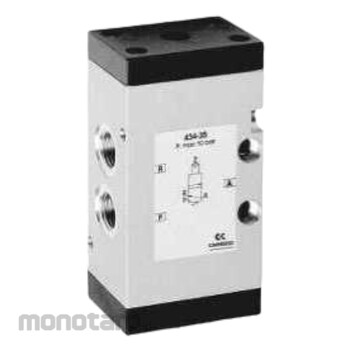

Camozzi Electrop. Spool Valve Series 4
#Grup produk P108097726
Sebelum PPN:
Rp1.099.900 - Rp6.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Material | AL body and subbases, stainless steel spool, technopolymer end cover, NBR PU seals |
|---|---|
| Operating Temperature (°C) | 0 to 60 (with dry air at -20) |
| Construction | Balanced spool type |
| Installation | In any position |
| Medium | Filtered air, without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil., Once applied the lubrication should never be interrupted. |
