Series P direct acting solenoid valves are available as 3/2-way, either NC or NO.
Both versions can be mounted on single sub-bases or manifolds and they are equipped with a monostable manual override

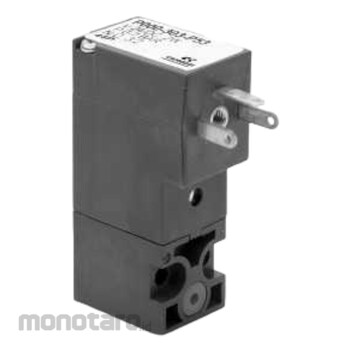

Camozzi Directly Operated Mini Solenoid Valve
#Grup produk P108097647
Spesifikasi
| Operation | Direct acting poppet type |
|---|---|
| Operating Temperature (°C) | 0 to 50 |
| Operating Pressure (bar) | 0 to 3 to 10 |
| Medium | Filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas |
| Installation | In any position |
| Body Material | PBT technopolymer |
| Duty Cycle (%) | ED 100 |
| Electrical Connection | With industrial standard connector (9.4mm) |
| Manual override | Monostable button |
| Nominal Diameter (mm) | 0.8 to 1.5 |
| Nominal Flow (nl/minute) | 14 to 35 (air @6bar Pressure Loss 1bar) |
| Pneumatic Connections | On subbase with ISO 15218 interface by means of screws |
| Power Consumption (W) | 2 - 1 (24V DC only) |
| Protection Class | IP65 with connector |
| Response Time (ms) | ON <10; OFF <15; (ISO 12238) |
| Seal Material | FKM, NBR (FKM on demand) |
| Voltage (V) | 24 DC 50/60Hz |
| Voltage Tolerance (%) | ±10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
Can be mounted on a single base (M5 connections) or on manifold (M5 connections or fittings for Ø3 o Ø4 tube).Ulasan Produk
