Camozzi Bellows Suction Pad 2,5 Material Silicone
#Grup produk P108097300
Spesifikasi
| Description | Wear resistant suction pad consisting of rubber part VTCN with 2.5 folds and connection nipple |
|---|---|
| Maintenance | It is possible to replace the rubber part |
| Construction | Nipples and suction pads are supplied not pre-assembled |
| Working Temperature (°C) | SILICONE version: -50 to +220 (for short time <30 sec.); -30 to +180 (long-term) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

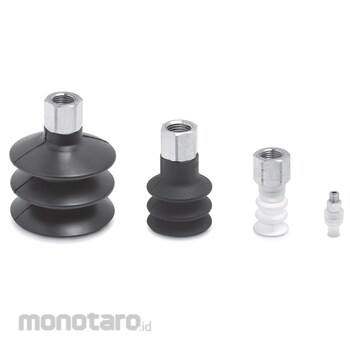

Series VTCN bellows suction pads, available in NBR or Silicone, are suitable to handle uneven workpiece surfaces or workpiece major height differences. Diameters from 5 to 52 mm with thread size M5, G1/8, G1/4, both male and female
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya, - Produk yang diterima akan sesuai dengan informasi model number/part number yang tertera pada website.
Feature
- Wide range of diameters, in NBR or Silicone versions.- Soft, tapered sealing lip for very good adaption to curved or uneven workpiece surfaces in general.
- High suction force and optimal damping when placed on the workpiece.
- Support on the bottom to avoid permanent deformation of the workpiece.
- Very stiff top fold for good stability and good resistance towards transversal forces at high accelerations.
- Very good compensation of possible height differences on the workpiece.
- Optimised shape with 2,5 folds.
Use
- Handling of even or uneven workpieces such as plates for car bodies, tubes, cardboard boxes- Handling of fragile workpieces such as electronics components, injection moulded pieces, etc
- Handling of welded pieces
- Silicone version for handling of pieces at high temperatures
