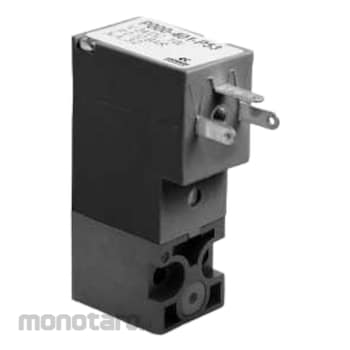

Camozzi 3/2-Way NO Solenoid Valve
#Grup produk P108097027
Spesifikasi
| Function | 3/2 NO |
|---|---|
| Operation | Direct acting poppet type |
| Operating Temperature (°C) | 0 to 50 |
| Operating Pressure (bar) | 0 to 3 to 10 |
| Medium | Filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas |
| Installation | In any position |
| Body Material | PBT technopolymer |
| Duty Cycle (%) | ED 100 |
| Electrical Connection | With industrial standard connector (9.4mm) |
| Internal Parts Material | Stainless steel |
| Manual override | Monostable button |
| Nominal Diameter (mm) | 0.8 to 1.5 |
| Nominal Flow (nl/minute) | 14 to 35 (air @6bar Pressure Loss 1bar) |
| Pneumatic Connections | On subbase with ISO 15218 interface by means of screws |
| Power Consumption (W) | 2 - 1 (24V DC only) |
| Protection Class | IP65 with connector |
| Response Time (ms) | ON <10; OFF <15; (ISO 12238) |
| Seal Material | FKM, NBR (FKM on demand) |
| Voltage (V) | 12 to 110 DC - 24 to 110 AC 50/60 Hz |
| Voltage Tolerance (%) | ±10 |
