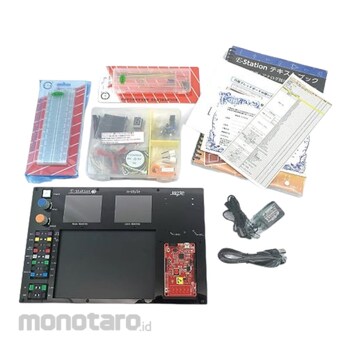

MGIC Electronic Circuit Learning Kit E-Station n-style
#Grup produk P108071038
Spesifikasi
| Body Size (mm) | 310x210 |
|---|---|
| Input Impedance | 1 megohm or more |
| Board Color | Black |
| Number Of Experimental Themes | 49 |
| Oscilloscope | Common to 2CH and Time settings (Gain can be individually set) |
| Resolution (RGB) | 240 RGB x 320 |
| Ammeter (mA) | 0.01 to 100 |
| Current Capacity (3.3 VDC) (mA) | 200 |
| Frequency Setting | SINE, RECT Individually configurable, SINE 4 Vp-p/10 Hz to 76 kHz/25 mA driving capacity, RECT 5 Vp-p/1 Hz to 1 MHz/8 mA (L) to 4 mA (H) driving capacity |
| Input Voltage Range (Gain 1, Gain 2) (mV/D-V/D) | 20 to 4 (8 levels) |
| Input Voltage Range (V) | 0 to 5 |
| Package Size (mm) | 285x385x125 |
| Power Supply (V DC) | 5 |
| Resolution (mV) | 1 |
| Time Range | 10 micros/D to 50 ms/D (12 levels) |
| Volt Meter | V1,2 |
| Width (mm) | 48.6x64.8 |
