AS ONE Draft Hot Plate
#Grup produk P108063598
Spesifikasi
| Material | Body/SUS316 , Control Part/SUS304 , top board/Aluminium + Ceramic Coating (Containing Fluorine Plastic) |
|---|---|
| Maximum Power Consumption (W) | 1450 |
| Size Main Unit (mm) | 440x340 |
| Maximum Temperature (°C) | 280 |
| Temperature Controller | Display accuracy ± 2% , PID control , Temperature adjustment timer (0 to 99 hours 59 minutes, with device stop function) |
| Cable Length Between Units (m) | 2 on the hot plate side/1 on the control part side, 3 in total |
| Heater Power (W) | Sheath Heater 1400 |
| Package Size (mm) | 790x435x175 |
| Power Supply | AC100V 50/60 Hz power cord (3P Ground Cord 2.5 m) |
| Safety device | Ground fault circuit breaker 15 A |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature

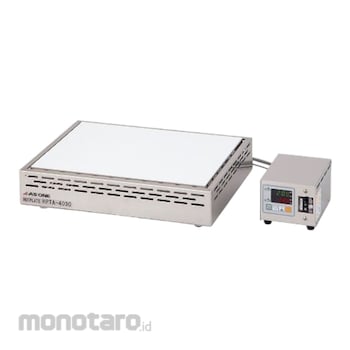

It is a hot plate with chemical and acid resistance considered for each component, assuming that it is used in a draft. The temperature controller is separate and can be pulled out from the draft. The housing is SUS 316, the top plate is fluorine coated, the internal wiring is fluorine coated, and the heater is Incoloy 800 to reduce deterioration due to erosion caused by the atmosphere. An earth-leakage breaker is used to reduce the risk of earth-leakage due to erosion, etc. A hot plate with enhanced chemical resistance.Ulasan Produk
