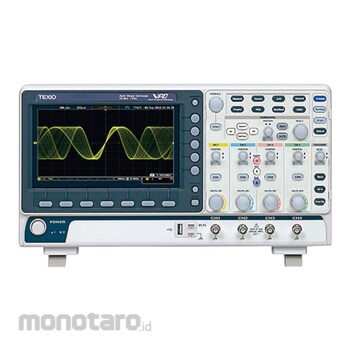

TEXIO TECHNOLOGY Digital Storage Oscilloscope
#Grup produk P108059434
Spesifikasi
| Number of Channels | 2 |
|---|---|
| Size (mm) | 384x127x208 |
| Frequency band (MHz) | DC to 100 MHz |
| Input Impedance | 1 MΩ// about 16 pF |
| Sampling Rate | 2 ch or less/1GS/s, 3 ch or more/500 MS/s |
| DC Gain Probability | ± 3% Full Scale/2 mV/div to 10 V/div, ± 5% Full Scale/1 mV/div |
| Accessories | power cord (For AC100V), Probe (ch minutes) |
| Package Size (mm) | 316x500x235 |
| Power Consumption (W) | about 30 |
| Resolution | 8-bit |
| Sensitivity (mm/m) | 1 mV/div to 10 V/div |
| Waveform Calculator | +, -, x÷ , FFT, FFTrms, User-Defined Operation |
| polarity | Normal, Reverse |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
Fast waveform updates of up to 120,000 waveforms per second and grayscale display with VPO technology enable clear observation of rare phenomena. The waveform memory of up to 10M points/ch and the segment function of up to 29,000 screens make it possible to capture only necessary phenomena efficiently. Segment memory function Up to 29,000 waveforms can be recorded, analyzed, and saved for each trigger event.Ulasan Produk
