FBN sprockets are finished sprockets made by processing KANA standard NK sprockets with shaft holes, keyways, and set screws.
High-precision and stable quality are achieved through a centralized production system with excellent equipment and thorough quality control.
More than 1900 statistical variations match user needs and reduce total cost.
FBN (new JIS processing) is processed based on the new JIS standard (JIS B 1301-1976) parallel key.
Key width tolerance is H7.

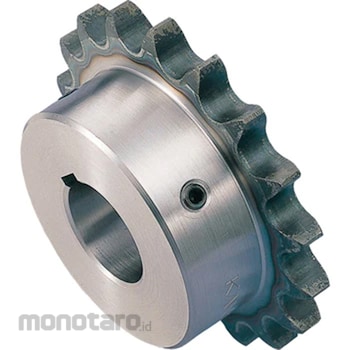

Katayama Chain Sprocket New Jis Key Specification FBN50B Series
#Grup produk P108043196
Spesifikasi
| Set screw (M) | 6 |
|---|---|
| Number of Teeth | 11 |
| Material | Carbon steel for machine structural use |
| Sprocket shape | B-type |
| Roller Link Inner Width (W) (mm) | 9.53 |
| Roller outer diameter (Dr) (mm) | 10.16 |
| Boss Diameter BD (mm) | 45.5 |
| Boss length BL(mm) | 25 |
| Chain pitch (P) (mm) | 15.875 |
| Shaft Hole Diameter (mm) | 20 |
