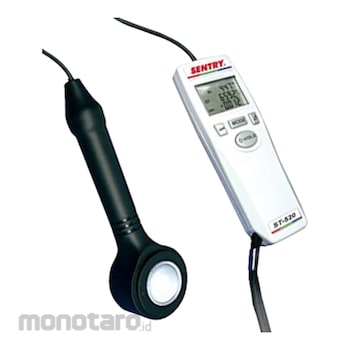

AS ONE Color Illuminometer
#Grup produk P108024377
Spesifikasi
| Body Size (mm) | 140x49x29 |
|---|---|
| Sensor Size (mm) | 165x50x36 |
| Reproducibility | x,y/ ±0.003 (when RGB LED is 100Lx) |
| Measurement Function | Illuminance, Chromaticity coordinate (x,y) (CIE1931), (u',v') (CIE1976), Correlated color temperature, color difference (CIE1960) |
| Temperature Characteristics | Ev/ ±(5% + 2digit) (when standard illuminant is A3000Lx), x,y/ ±0.008 (when RGB LED is 100Lx) |
| Measurement range (lx) | 0 - 80000 |
| Accuracy | Ev/ ±3% + 2 digit (when standard illuminant is A3000Lx), x,y/ ±0.02 (when RGB LED is 100Lx) |
| Measurement Range (CCT) | 99990K (MAX) |
| Power Supply | 006 (9V) dry cell |
| Resolution | Ev/1Lx (0 - 9999Lx), 10Lx (10000Lx or more), CCT/1K (0 - 9999K), 10K (10000K or more), x,y/0.001, u’,v’/0.001 |
| Response Time (s) | Approximately 1 second |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
Provided with white LED suitable for measuring color temperatureFixed by magnet attached to body
Comes with mount for tripod
