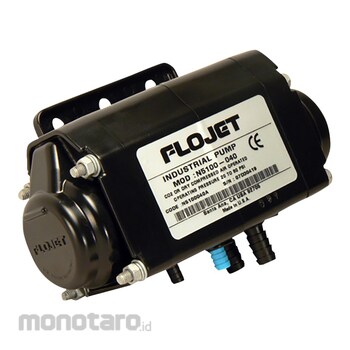

JABSCO Air Driven Diaphragm Pump
#Grup produk P107993025
Spesifikasi
| Material | Wetted Part/POM (polyacetal), Diaphragm/Valve/Viton (R) |
|---|---|
| Size (mm) | 157x105x61 |
| Operating Temperature (°C) | Max. 49 |
| Application | Can be used for food and beverage equipment, washing machines, chemical equipment, and industrial equipment. |
| Air Port (inch) | 1/4 |
| Maximum Air Pressure (kg/cm²) | 5.5 |
| Maximum Discharge Pressure (kg/cm²) | 5.5 |
| Maximum Flow Rate (L/minute) | 9.5 |
| Maximum Self-Priming Force (m) | 8.5 m |
| Package Size (mm) | 175×145×65 |
| Port (inch) | 3/8 |
| Viscosity Used | 250 cP max. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsUlasan Produk
