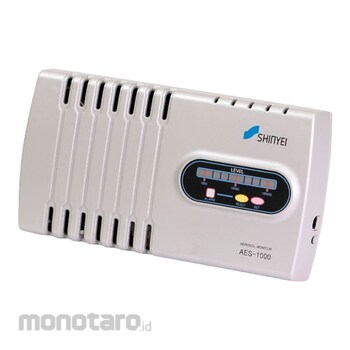

SHINYEI Aerosol Monitor
#Grup produk P107992266
Spesifikasi
| Interface | 1 Ethernet port |
|---|---|
| Operating Environment (°C) | 0 to 40 |
| Size (mm) | 192x102x37 |
| Display Method | LED level display of equivalent cleanliness class |
| Display Level | Class 100 Equivalent to Class 100,000 Equivalent in 10 Levels 100 -1,000 -2,000 -3,000 -5,000 -10,000 -20,000 -30,000 -50,000 -100,000 |
| Measuring Method | Light Scattering Method Sensor AES1-05N |
| Alarm Indication | Alarm LED is turned on for the corresponding class that has been set. |
| Alarm Output | Open Collector Output (View and Sync) |
| Package Size (mm) | 380×180×80 |
| Sampling Method | Sampling equivalent to 0.1 L per minute |
| Supply Voltage | 12 VDC applied from AC adapter or terminal attached to ± power supply 10% |
| Target Cleanliness Class | Class 100 Equivalent to Class 100,000 Equivalent Level |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
It stably detects suspended particles over 0.5 μm with high sensitivity and displays cleanliness class equivalent values (from class 100 to 100,000) in 10 levels.Air is sucked by the air flow generating mechanism by the built-in heater, so no suction pump is required.
10 levels can be set for alarm display and output.
Ethernet support allows multiple network management.
The light-emitting section has a long life design with continuous energization for 20,000 hours.
Compact, lightweight and easy to install.
LAN cabling for remote management
