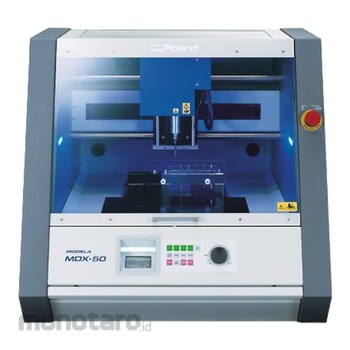

Roland DG Cutting Machine
#Grup produk P107988281
Spesifikasi
| Interface | USB |
|---|---|
| Processable Material | Plastic (Metals are not included.) such as chemical wood and modeling wax |
| Operating Range (mm) | 400x305x135 |
| Mountable Work Size (mm) | 400x305x100 |
| Shaft drive system | stepping motor |
| Control Commands | R -1, NC Code |
| Mechanical resolution | Half Step/0.01/Step |
| Mountable Tool Shank Diameter (mm) | 6 |
| Operating Speed (mm/minute) | XY/7 to 3600, Z/7 to 3000 |
| Package Size (mm) | 930×1070×1045 |
| Power Consumption (W) | 95 |
| Software resolution | RML-1/0.001 mm/Step, NC Code/0.001 mm/Step |
| Spindle Motors | brushless DC motor |
| Spindle rotation speed | 4500 to 15000rpm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
NC codes created by students are output in MDX-50, enabling students to experience trial and error and use it as a tool for learning "machining".CAM software for many file formats is included, allowing you to quickly process data created in 3DCAD.
Equipped with an auto tool changer (ATC) as standard, there is no downtime associated with tool replacement, and automatic operation from roughing to finishing is possible at once.
Tool length measurement and registration of correction value are also automatically performed, so even beginners can handle it by prorating.
