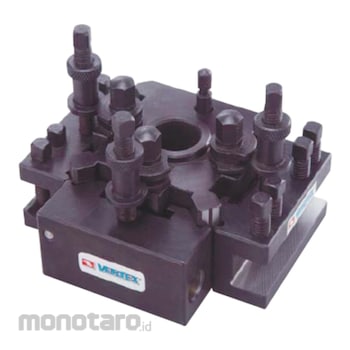

Quick Change Tool Post & Holders-Italian Style
Complete set includes:
- 1 pieces Tool post
- 3 pieces of turning holders
- 1 piece of Round shanks
- Standard spanners
Vertex Quick Change Tool Post and Holders
#Grup produk P107972129
Spesifikasi
| H Max (mm) | 53 |
|---|---|
| H Min (mm) | 38 |
| Lathe Swing (mm) | 300 - 380 |
| Morse No. | 3 |
| T Max (mm) | 25 |
| V Max (mm) | 17 |
| Diameter D (mm) | 10 |
| Diameter Max (mm) | 20 |
| Dimension B (mm) | 91.6 |
| Dimension C (mm) | 75 |
| Dimension DH7 (mm) | 28 |
| Dimension E (mm) | 13 |
| Dimension F (mm) | 90 |
| Dimension G (mm) | 40 |
| Dimension H1 (mm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Italian Style- The main block is assembled with cast-hardened steel, secured rigidly by the latch carriage machine steel bolt.
- The main block has 4 slide openings for inserting the proper tool-holder, these can be securely fastened by a simple and safe eccentric device, which also adjusts the height for each tool holder.
- The tool shank is securely held by 4 hardened screws. The simplicity and fast tool changing increase the production of lathe turning.
- No chatter or vibrations.
- This style is interchangeable with Rapidue and STM.
