- Compact, Small And Light Weight
- No Wrench Required, Turn To Loose & Lock By Fixing Ring
- Steel Made Body
- Reversible Jaws
- VLBK-Series Is Latest Vertical Clamping Design For CNC, Milling Machine And Machining Center

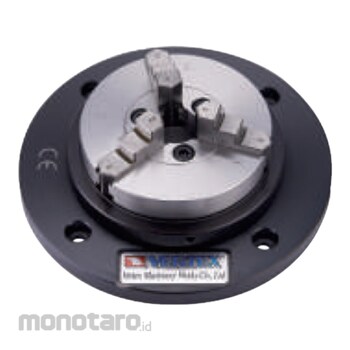

Vertex Low Profile Chuck
#Grup produk P107972068
Spesifikasi
| Gripping I.D Range (⌀mm) | 23 - 58 |
|---|---|
| Gripping O.D Range (⌀mm) | 0.8 - 63 |
| Dimension A (mm) | 118 |
| Dimension B (mm) | 28 |
| Dimension C (mm) | 63 |
| Dimensions d (mm) | 100 |
| Dimension E (mm) | 16 |
| Dimension F (mm) | 4 |
| Dimension G (mm) | 4-M5X0.9P |
| Dimension H (mm) | 27 |
| Dimension I (mm) | 26 |
| Dimension K (mm) | 13 |
| Dimension L (mm) | 8 |
| Dimensions j (mm) | 8 |
