Samoa mechanical preset metered control valves allow automatic filling of large crankcases, engines and other lubricant reservoirs. For automatic operation, set the dial pointer to the quantity needed, actuate the trigger for automatic latching and the valve will deliver exactly the volume required and then shut off.
Extensively and rigorously field tested. Reliable performance.
No calibration required. High accuracy within a large viscosity range.
One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
The reset mechanism incorporates a safety clutch for preserving the preset mechanism in case the knob is turned in the wrong direction.
Mechanical shut-off mechanism. High wear and stress resistant shut off mechanism.
Simple and easy to read dial includes 5-digit totalizer.
Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
PA40 Control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.

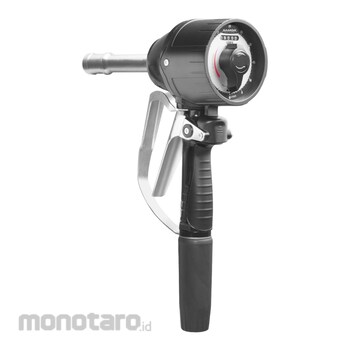

SAMOA Mechanical Preset Metered Control Valve
#Grup produk P107956617
Spesifikasi
| Accuracy (%) | ± 0.65 |
|---|---|
| Fluid Compatibility | Synthetic and mineral oils, ATF, Antifreeze |
| Fluid Inlet (inch) | 1/2 BSP (F) |
| Fluid Outlet (inch) | 1/2 BSP (F) |
| Maximum Working Pressure (bar) | 100 |
| Maximum Flow Rate (L/minute) | 30 |
| Operating Temperature Range (°C) | -10 to 60 |
| Outlet Nozzle Part No | 369 244 |
| Outlet Nozzle Type | Rigid outlet with semiautomatic non-drip tip |
| Wetted Parts | Aluminium / Zinc alloy / Stainless steel / NBR / Brass / Steel / TPU / Polyamide |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Fluids HandledSynthetic and mineral based lubricants, Gear Oil, Hydraulic oil and fluids, ATF.
Use
Truck dealerships, Fleet service, Mining and construction, Lube trucks, Railroad and Mass Transit Vehicles.Ulasan Produk
