Samoa large delivery control valves are used at end of hose assembly to dispense large volumes of lubricants and antifreeze solutions.
Extensively and rigorously field tested. Reliable performance.
Heavy Duty aluminium pressure cast body to stand the toughest working conditions.
High flow pressure balanced valve for comfortable use.
Large port inlet swivel (1" and 3/4"). Inlet filter with large screen surface.
Safety guard avoids accidental openings.
Trigger can be blocked open for dispensing large volumes.
Outlets have 3/4" BSP (M) connection thread and use a bonded seal washer to assure a leak free operation.

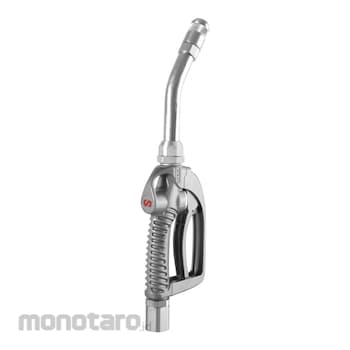

SAMOA High Flow Oil Control Valve
#Grup produk P107956556
Spesifikasi
| Fluid Compatibility | All type of synthetic and mineral oils, Antifreeze solutions, Hydraulic fluid |
|---|---|
| Fluid Inlet (inch) | 3/4 BSP (F) or 1 BSP (F) |
| Fluid Outlet (inch) | 3/4 BSP (F) |
| Inlet Swivel Thread (inch) | 3/4 BSP (F) |
| Maximum Working Pressure (bar) | 100 |
| Maximum Flow Rate (L/minute) | 90 |
| Operating Temperature Range (°C) | -10 to 70 |
| Outlet Nozzle Type | 30 degree rigid with semiautomatic non-drip tip |
| Wetted Parts | Aluminium / Zinc plated steel and brass / NBR |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Fluids HandledSynthetic and mineral based lubricants, Gear Oil, Hydraulic oil and fluids, ATF, Antifreeze solutions.
Use
Truck dealerships, Fleet service, Mining and construction, Lube trucks, Railroad and mass transit vehicles.Ulasan Produk
