EKF 450.3
45° Chamfering

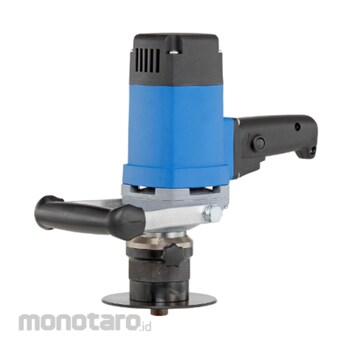

The EKF 450.3 Plate Chamfering Machine is designed to bevel 45° weld seams on steel, stainless, nonferrous metals, brass, and plastics.
Ideal for the following applications: Moldmaking, Boiler and process plant construction (prepare weld seams on heat exchangers), Mechanical engineering (deburr machine parts, chamfer edges to protect against paint peeling and create visible edges), Sheet metal (deburr cut edges).
This made in Germany plate chamfering machine is equipped with a strong 1500 Watt (13.6 Amp) motor delivers 6000 RPM.
EKF 450.3 is equipped with a new generation milling head consisting of 3 triangular shaped carbide inserts which can be used from three sied.
This lightweight machine weighs just 4.6 kg. (10.5 lbs.)
BDS Plate Chamfering Machine
#Grup produk P107930503
Spesifikasi
| Voltage (V) | 220-240 / 110-125 (50-60 Hz) |
|---|---|
| Feed | Manual |
| Chamfer Width (mm) | 0-6 |
| Angle Adjustment (°) | 45 |
| Carbide Reversible Disc (Insert) | SHM 200/SHM 200-E |
| Milling Cutter | ZFR 450.3 |
| Motor Output Power (W) | 1500 |
| Speed (rpm) | 6000 |
