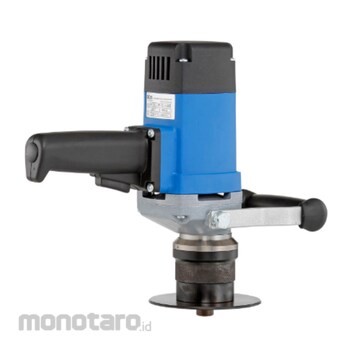

EKF 300.3
30° Chamfering (1/4inch)
EKF 300.3 Chamfering Machine with fine adjustment feature for slight chamfers when deburring for the preparation of weld seams.
The EKF 300.3 is ideal for chamfering 30-degree angle in 5 mm (1/4inch) width. Ideal for straight edges, from the outside edge of the profile as well as the inside edges.
Equipped with a robust milling cutter the EKF 300.3 has 3 pieces of carbide inserts in a triangular shape which can be used from 3 sides.
Made in Germany EKF 300.3 is equipped with a powerful 1500 Watt (13.6 Amp) motor which delivers 6000 RPM.
This compact EKF 300.3 chamfering machines weighs just 4.6 Kg (10.5 lbs)
BDS Chamfering Machine
#Grup produk P107930488
Spesifikasi
| Voltage (V) | 220-240 / 110-125 (50-60 Hz) |
|---|---|
| Feed | Manual |
| Chamfer Width (mm) | 0-5 |
| Angle Adjustment (°) | 30 |
| Carbide Reversible Disc (Insert) | SHM 200-E |
| Milling Cutter | ZFR 300.3 |
| Motor Output Power (W) | 1500 |
| Speed (rpm) | 6000 |
