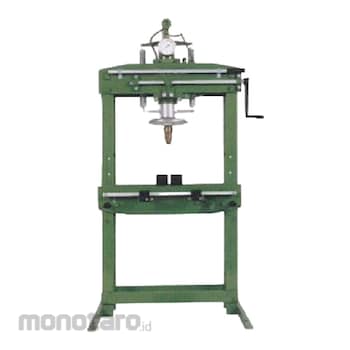

NAGASAKI Hydraulic Press
#Grup produk P107906445
Spesifikasi
| Capacity (t) | 15 |
|---|---|
| Total Height (mm) | 1650 |
| Width (mm) | 800 |
| Floor Area (mm²) | 860x750 |
| Cylinder Bore (mm) | 80 |
| Rod Stroke (mm) | 100 |
| Adjustable Height of Table (mm) | 580 |
| Adjustable Length of Ram (mm) | 240 |
| Between - Center Distance of Aligning Machine (mm) | 530 |
| Pressure (Kg/Cm²) | 300 |
| Required Oil (L) | Approx 1 |
| Screw Stroke (mm) | 110 |
| V-Block (mm) | 65x200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Our Press with a Ram stably operates without slipping or quivering unlike other conventional presses because our newly developed screw moves the ram. This series carry out exellent task such as bushing, placing of bearing, driving, punching and centering of shafts with its agile operation.- The result of a high-pressure test contains that the cylinder can be handled as a stable tool assuring simplified work. Because the inside of the cylinder was accurately processed, this series.
- Because the inside of the cylinder was accurately processed, this series maintain the efficiency and accuracy without oil leaks even after long-term operation.
