It is a mechanism that can reduce the rotation speed of the motor and increase the torque.
- Calculated by dividing by the reduction ratio based on the synchronous rotation speed of the motor (50Hz / 1500rpm, 60Hz / 1800rpm)

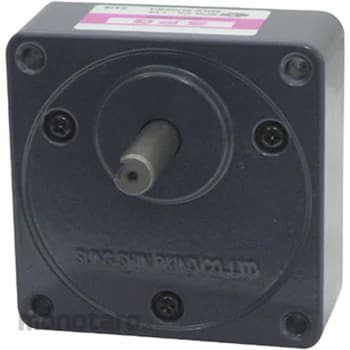

SPGs Induction Motor Gearhead 25W
#Grup produk P107905792
Spesifikasi
| Reduction Ratio | 25 |
|---|---|
| Dimension L1 (mm) | 42.5 |
| Rotation Speed 50/60 Hz (rpm) | 60/72 |
| Motor Mounting Angle (mm) | 80 |
| Mounting Hole Spacing Square (mm) | 80 |
| Allowable Torque (N m) | 50Hz/3.94; 60Hz/3.22 |
| Direction of Rotation | Opposite direction to motor |
| Motor Type | Gear head |
| RoHS Directive | Correspondence (corresponding to 10 substances) |
| Shaft End Shape | Parallel axis |
| Shaft Shape | Gear cutting type |
| Suitable For | Induction motor 25W |
| Type | Ball bearing + metal mix type |
