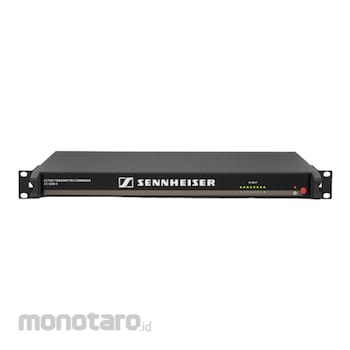

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel wireless monitoring systems. the AC3200-II combines up to eight channels for transmission via one antenna, with a broadband design covering 500 - 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping backstage clutter to a minimum. Long distances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.
-Active 8-channel 0 dB transmitter combiner with highly constant RF output power over the entire frequency range
-Significant improvement of RF performance for multi-channel systems
-Broadband RF design to cover the UHF frequency range from 500-870 MHz
-Maximum input power of 250 mW
-LEDs on the front show whether a signal is present at the RF input
-Compatible with SR 2050XP IEM, SR 2000XP IEM, SR 300 IEM G3, and legacy EW and 3000 Series monitor transmitters
What's in the Box :
1 AC 3200-II active transmitter combiner
1 NT12-125D in-line power supply
3 power cables (US/EU/UK)
4 self-adhesive device feet
1 instruction manual
Sennheiser Active Higher Powered Antenna Combiner
#Grup produk P107903776
Spesifikasi
| Impedance (ohm) | 50 |
|---|---|
| Operating Temperature (°C) | -10 to +45 |
| Attenuation | 0 (+/- 1dB) |
| RF Frequency Range (MHz) | 470 - 870 |
| Antenna Connector | BNC |
| Current Consumption (A) | max. 7.5 |
| Dimensions (mm) | 436x215x44 |
| Power Consumption (W) | Max. 90 |
| Power Supply (V DC) | 12 |
