Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
-Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
-Easy and flexible wireless synchronization between transmitter and receiver via infrared
-Compatible with Sennheiser WSM control software for flexible frequency allocation
-Up to 16 compatible channels
-Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-Transmission Range: up to 100 meters / 300 feet
-High RF output power (up to 50 mW) depending on country regulations
Frequency range = A1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
748.3 MHz - 757.7 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
Receiving frequency = Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
What's in the Box :
EK IEM G4 stereo receiver
2 AA batteries
IE 4 earphones
quick guide
safety guide
manufacturer declaration sheet

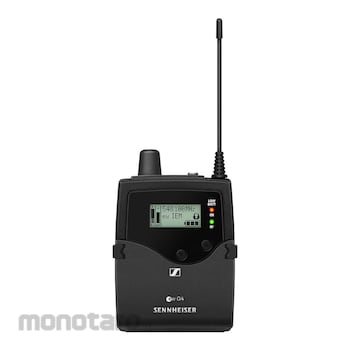

Sennheiser Stereo Bodypack Receiver
#Grup produk P107903138
Spesifikasi
| Audio-Output-Power (mW) | 2x100 (at 32 Ω) |
|---|---|
| RF Sensitivity | < 4 μV, typ. 1.6 μV for 52 dBA rms S/N |
| Bass Boost (dB) | +8 (at 8 kHz) |
| Compander | Sennheiser HDX |
| THD, Total Harmonic Distortion (%) | ≤ 0.9 |
| Adjacent Channel Rejection (dB) | Typically ≥ 65 |
| Blocking (dB) | ≥ 80 |
| Dimensions (mm) | Approx. 82x64x24 |
| Intermodulation Attenuation (dB) | Typically ≥ 70 |
| Modulation | Wideband FM |
| Nominal Deviation (kHz) | ±24 |
| Operating Time (hour) | Approx. 4 to 6 (Depending on Volume Level) |
| Peak Deviation (kHz) | ±48 |
| Power Supply | 2 AA Batteries, 1.5 V or BA 2015 Accupack |
| Powering (V) | 3 Battery (2.4 V Rechargeable Battery) |
| Receiver Principle | Adaptive Diversity |
| Signal to Noise Ratio (dBA) | Approx. 90 |
| Squelch (dBµV) | 5 to 25 (Adjustable in Steps of 2 dB) |
| Switching Bandwidth (MHz) | up to 42 |
| Temperature Range (°C) | -10 to +55 |
