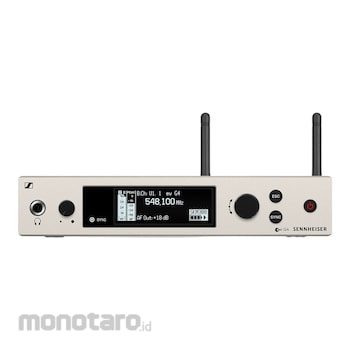

Sennheiser Rackmount True Diversity Receiver

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control with increased bandwidth and transmission power, ready to take the world‘s biggest live stages. For evolution wireless G4 300/500 Series systems.
-True diversity half-rack receiver in a full-metal housing with intuitive OLED display
-Easy to use, fast setup time
-Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
-Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
-Up to 88 MHz bandwidth, up to 32 channels
-Increased RF output power (10/30/50 mW)
-Transmission Range: up to 100 meters / 330 feet
-Compatible with wireless speaker system LSP 500 PRO
-RC (remote control) switch available for the bodypack transmitter
Frequency range = AS: 520 - 558 MHz
Aw+: 470 - 558 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
GBw: 606 - 678 MHz
Gw: 558 - 626 MHz
Gw1: 558 - 608 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Receiving frequency = Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
Equalizer = Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
What's in the Box :
EM 300-500 G4 true diversity receiver
2 rod antennas
power supply
GA 3 rackmount set
quick guide
safety guide
manufacturer declaration sheet
