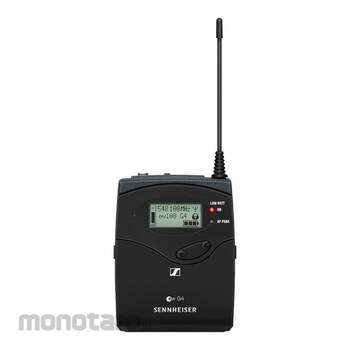

Sennheiser Bodypack Transmitter

Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems.
-Robust bodypack transmitter for daily use on stage.
-Easy and flexible wireless synchronization between transmitter and receiver via infrared
-Fast frequency allocation for up to 12 receivers via new linking functionality
-Up to 20 compatible channels
-Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-Transmission Range: up to 100 meters / 300 feet
-High RF output power (up to 30 mW) depending on country regulations
-Frequency range = A: 516 - 558 MHz
1G8: 1785 - 1800 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
-Transmission frequency = Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
-Current consumption =
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA"
What's in the Box :
SK 100 G4 bodypack transmitter
2 AA batteries
quick guide
safety guide
manufacturer declaration sheet
