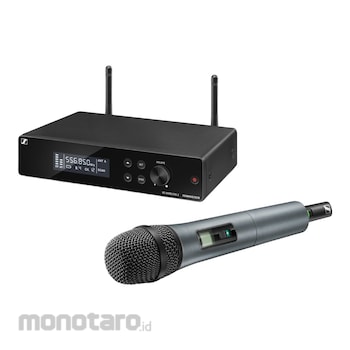

Sennheiser Vocal Set with e 865 Characteristics

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.
-Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
-True diversity receiver with metal housing
-External antennas
-Automatic frequency management and synchronization via
-remote channel for easy setup
-Fully tunable over a wide range of UHF frequencies
-Rackmount kit included
-Up to 12 compatible channels
Microphone:
Operating time = approx. 10 hrs
Power supply = 2 AA size batteries, 1.5 V
Pick-up pattern = super-cardioid
Switching bandwidth = up to 24 MHz
Modulation = wideband FM
Output voltage = 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Frequency = 8 frequency banks, each with up to 12 factory-preset channels
Frequency range =
A: 548-572 MHz
GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity = < 3 μV at 52 dB(A)rms S/N
Squelch = switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization = 2.4 GHz, Low Power OQPSK (only active during synchronization)
Audio adjustment range = 40 dB, adjustable in 5-dB steps
Temperature Range = operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle = double superheterodyne
Diversity principle = True Diversity
What's in the Box :
1 receiver EM-XSW 2
1 handheld transmitter SKM 865-XSW
1 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
1 rackmount kit
1 pouch
user manual
