Sennheiser Lavalier

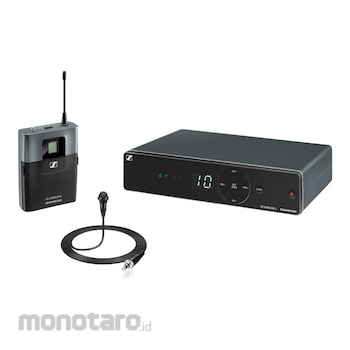

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

-Compact bodypack transmitter, unobstrusive clip-on microphone
-Antenna-switching diversity reception
-Integrated antennas
-Automatic frequency management and synchronization via remote channel for easy setup
-Selectable UHF frequencies within a large bandwidth
-Up to 10 compatible channels

Transmitter :
Dimensions = approx. 71 x 96 x 28 mm
Power supply = 2 AA size batteries, 1.5 V
Adjustment Range Transmitter = 0 to -30 dB, adjustable in 10 dB steps
Microphone = condenser
THD, total harmonic distortion = ≤ 0.9%
Pick-up pattern = omni-directional
Signal-to-noise ratio = ≥ 103 dBA
RF output power = 10 mW
Switching bandwidth = up to 24 MHz
Operating time = approx. 10 hrs
Modulation = wideband FM
Output voltage = '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing = rugged ABS housing
Diversity reception = antenna switching diversity via internal antennas
Frequency = 8 frequency banks, each with up to 10 factory-preset channels
"Frequency range = A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz, C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz"
Sensitivity = < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation = 130 dB
Squelch = adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization = 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity = 1.5 mV / Pa
Audio adjustment range = 45 dB, adjustable in 5-dB steps
Line / Mic level = 20 dB, switchable
Temperature Range = operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle = double superheterodyne

What's in the Box :

1 receiver EM-XSW 1
1 lavalier microphone ME 2-2
1 bodypack transmitter SK-XSW
1 power supply NT 12-5 CW
2 AA batteries
