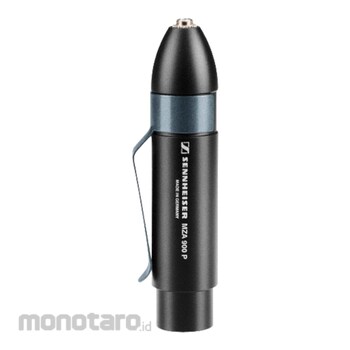

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 - 52 V phantom powering (P12 - P48). The connected microphone is supplied via the adaptor.
The phantom power adaptor is available in two different versions:
MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless)
MZA 900 P-4 with lockable 3-pin special socket
The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.
The MZA 900 P can also be used as a cable tester for XLR microphone cables.
-Robust metall chassis
-Switchable gain (0/-12dB)
-Switchable roll-off filter (125 Hz (-3 dB), 12 dB/oct)
-Two-colour control LED (phantom power, audio peak)
-Input 3,5mm stereo jack socket, lockable
-Output XLR-3M
What's in the Box :
MZA 900 P with belt clip
Instructions for use
Warranty certificatee
Sennheiser Mic Preamp Module
#Grup produk P107901592
Spesifikasi
| Minimum Terminating Impedance (ohm) | 5kOhms (P12 - P48) @ 0dB gain; 2kOhms (P12 - P48) @ -12dB Gain |
|---|---|
| Operating Temperature (°C) | -20 to +60 |
| Output voltage (V) | 1.8 (P48), 0.6 (P12) (0dB gain) |
| Phantom Powering | P12 - P48, 10 - 52V, 2,6 - 2,8mA |
| Dimensions (mm) | Ø 19/22, L 100 |
| Frequency Response (Hz) | 20 - 20000 (-1 dB) |
| Gain (dB) | 0/-12 |
| Nominal Impedance (ohm) | 100 |
| Output Impedance (ohm) | 100 |
