Spesifikasi
| Connector | XLR-3 |
|---|---|
| Pick-up Pattern | Super-Cardioid |
| Dimension (DxL) (mm) | Ø 20x100 |
| Sensitivity in Free Field, no Load (1kHz) | 3 mV/Pa = - 50dB (0 dB = 1 V/Pa) |
| Equivalent Noise Level (dBA) | 24 |
| Equivalent Noise Level Weighted as per CCIR (dB) | 35 |
| Frequency Response (Hz) | 40 - 20000 |
| Maximum Sound Pressure Level (dB) | 139 (SPL) |
| Minimum Terminating Impedance (ohm) | 1000 |
| Nominal Impedance (ohm) | 50 |
| Phantom Powering (V) | 12 - 52 (3 mA) |
| Transducer Principle | Pre-Polarised Condenser Microphone |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

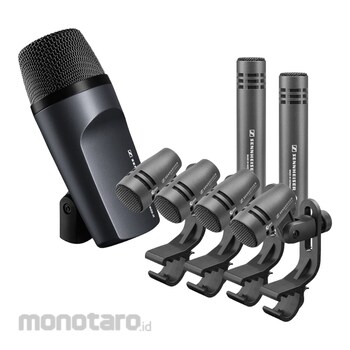

All you need for a powerful drum performance in a heavy duty case for optimal protection. Includes 1x e 602-II, cardioid instrument microphone for bass drums, 4x e 604, cardioid microphone for snare and tom-tom, and 2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead.
-e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording
-e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp
-602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.
602 ii :
Dimensions = Ø 60 x 153 mm
Connector = XLR-3
Transducer principle (Microphone) = dynamic
Frequency response = 20 - 16000 Hz
Pick-up pattern = cardioid
Sensitivity in free field, no load (1kHz) = 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
Nominal impedance = 350 Ω
Min. terminating impedance = 1000 Ω
e 604 :
Dimensions = Ø 33 x 59 mm
Connector = XLR-3
Frequency response (Microphone) = 40 - 18000 Hz
Transducer principle (Microphone) = dynamic
Pick-up pattern = cardioid
Sensitivity in free field, no load (1kHz) = 1,8 mV/Pa
Nominal impedance = 350 Ω
Min. terminating impedance = 1000 Ω
Weight w/o cable = 60 g
What's in the Box :
1x e 602-II, cardioid instrument microphone for bass drums
4x e 604, cardioid microphone for snare and tom-tom
2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead
-e 614: for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording
-e 604: for toms, snares, and percussion, clips-on quickly and easily wherever you choose. Tough, reinforced housing, and clamp
-602-II: for bass drums, bass guitar cabs and tubas. Solid, lightweight, and easy to position. For studios, clubs, rehearsal rooms, smaller gigs, or for home recording.
602 ii :
Dimensions = Ø 60 x 153 mm
Connector = XLR-3
Transducer principle (Microphone) = dynamic
Frequency response = 20 - 16000 Hz
Pick-up pattern = cardioid
Sensitivity in free field, no load (1kHz) = 0,25 mV/Pa; (50 Hz) 0,9 mV/Pa
Nominal impedance = 350 Ω
Min. terminating impedance = 1000 Ω
e 604 :
Dimensions = Ø 33 x 59 mm
Connector = XLR-3
Frequency response (Microphone) = 40 - 18000 Hz
Transducer principle (Microphone) = dynamic
Pick-up pattern = cardioid
Sensitivity in free field, no load (1kHz) = 1,8 mV/Pa
Nominal impedance = 350 Ω
Min. terminating impedance = 1000 Ω
Weight w/o cable = 60 g
What's in the Box :
1x e 602-II, cardioid instrument microphone for bass drums
4x e 604, cardioid microphone for snare and tom-tom
2x e 614, super-cardioid, permanently polarized condenser microphone for cymbal and overhead
