Challenger™ tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, heating expansion, irrigation systems, and hydraulic hammer arresting.
Water Chamber, Patented Controlled Action Design:
Efficient and cost effective, Challenger™ tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation. The CAD-2 diaphragm assembly is clenched together with a positive lock internal clench ring which contains drawdown water in a pre-charged air atmosphere, thus providing separation between the diaphragm and tank wall. This “air buffer” design means few problems with condensation. Constructed with an FDA approved high grade butyl, the diaphragm assembly seals water in a true non-corrosive chamber.

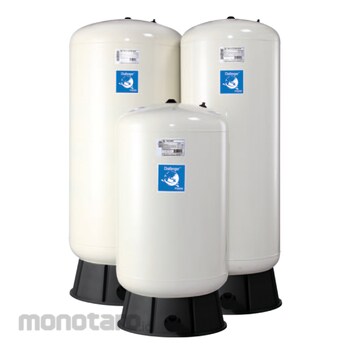

Global Water Pressure Tank Challenger Series
#Grup produk P107897606
Spesifikasi
| Volume (L) | 200 |
|---|---|
| Maximum Working Temperature (°C) | 90 |
| Maximum Working Temperature (°F) | 194 |
| Maximum Working Pressure (bar/psi) | 8.6/125 |
| System Connection | 1 1/4\" BSP stainless steel elbow |
| Dimension A (cm) | 105.56 |
| Dimension B (cm) | 53.29 |
| Dimension C (cm) | 5.68 |
| Dimension D (cm) | 44.63 |
