NEW FLOW Pressure Switch
#Grup produk P107886512
Spesifikasi
| Range (psi) | 0.4-2.8 |
|---|---|
| Wetted Parts Material | SS316 |
| Process Connection- Male (inch) | 1/2 NPT |
| Conduit Connection | 1/2 NPT Female, Standard |
| Switch Form | Micro Switch, 1 SPDT |
| Dead Band | 0.2-0.5 |
| Housing | Die cast aluminium alloy with paint. |
| Maximum Pressure Proof (psi) | 500 |
| Pressure Element | Welded type diaphragm |
| Process Material | Wetted parts are all in SS316 |
| Repeatability | ±1% of full scale |
| Switch Data | One SPDT & two SPDT Microswitch, 15amps 125/250VAC, DC 125V 0.4A, DC 30V 3A/Gold Contact Microswitch 1A 125/250VAC. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

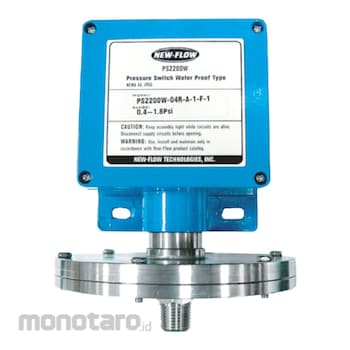

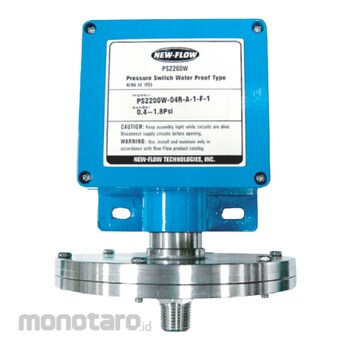

The New-Flow PS2200W, a water proof pressure switch, is designed to be used in control system. PS2200W has high set point repeatability and narrow dead band features. There is a variety of range selections available upon request. Easily adjusted to the set point, no special tools needed!
