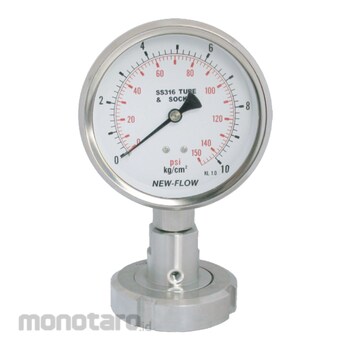

NEW FLOW Union Type Diaphragm Seal
#Grup produk P107886415
Spesifikasi
| Instrument Connection | Female Thread 1/4 inch to 1/2 BSP or NPT |
|---|---|
| Process Connection | 2 inch (SMS) |
| Minimum Pressure Range Limited (kg/cm²) | -1 - +1.5 |
| Maximum Pressure Range Limited (kg/cm²) | 0-16 |
| Material | Body: SS316 (standard), Option: SS316L, Hastelloy C276 and others on request |
| Dimension B | 62 |
| Dimension D | 84 |
| Dimension M | 26 |
| Membrane | SS316L (standard); Option: Hastelloy c276, tantalum and others on request |
| Temperature Limit (°C) | -40 - +150 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
DT-105 diaphragm seal is designed to be used in food, beverage industry annd pharmaceutical industry. It is easy to assemble with pressure gauges, pressure switches and pressure instruments.
